YH-1600 Home 홈 > 제품소개 > YH-1600
YH-1600
사양 (SPECIFICATION)

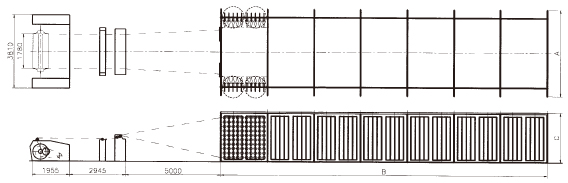

DIMENSION OF DIRECT WARPER FOR SYNTHETIC YARN(화섬용)
DIMENSION OF DIRECT WARPER FOR SYNTHETIC YARN(화섬용)
Specifications
Warping width 1780mm(2000mm)
Main motor DC Motor(11kw)
Brake system Air flex brake system
Yarn speed 10~600m/min
Winding diameter 800mm(920mm)
Catch bar Automatic pneumatic type
Beam doffing & lifting Automatic pneumatic type
Oiling or waxing Kiss roller system
Creel(10steps)
Pitch(mm) Total ends Dimension(mm)
A B C
230 1000 4500 12050 2642
1200 4580 14460 2642
1400 4660 16870 2642
250 1000 4500 13050 2682
1200 4580 15660 2682
1400 4660 18270 2682

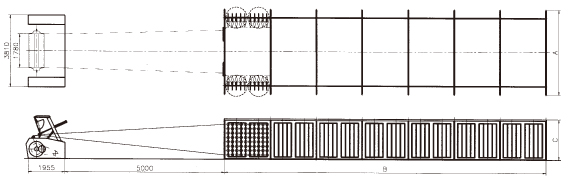

DIMENSION OF DIRECT WARPER FOR SPUN YARN(면용)
DIMENSION OF DIRECT WARPER FOR SPUN YARN(면용)
Specifications
Warping width 1780mm(2000mm)
Main motor VS Motor(15kw), DC Motor
Brake system Air flex brake system
Yarn speed 10~1000m/min
Winding diameter 800mm(920mm)
Catch bar Automatic pneumatic type
Beam doffing & lifting Automatic pneumatic type
Electrical supply 30KVA
Creel(8steps)
Pitch(mm) Total ends Dimension(mm)
A B C
230 480 4100 7230 2412
640 4300 9640 2412
800 4500 12050 2412
300 480 4100 9450 2672
640 4300 12600 2672
800 4500 15750 2672
※ 본 사양은 품질향상을 위해 예고없이 변경될 수 있습니다.
